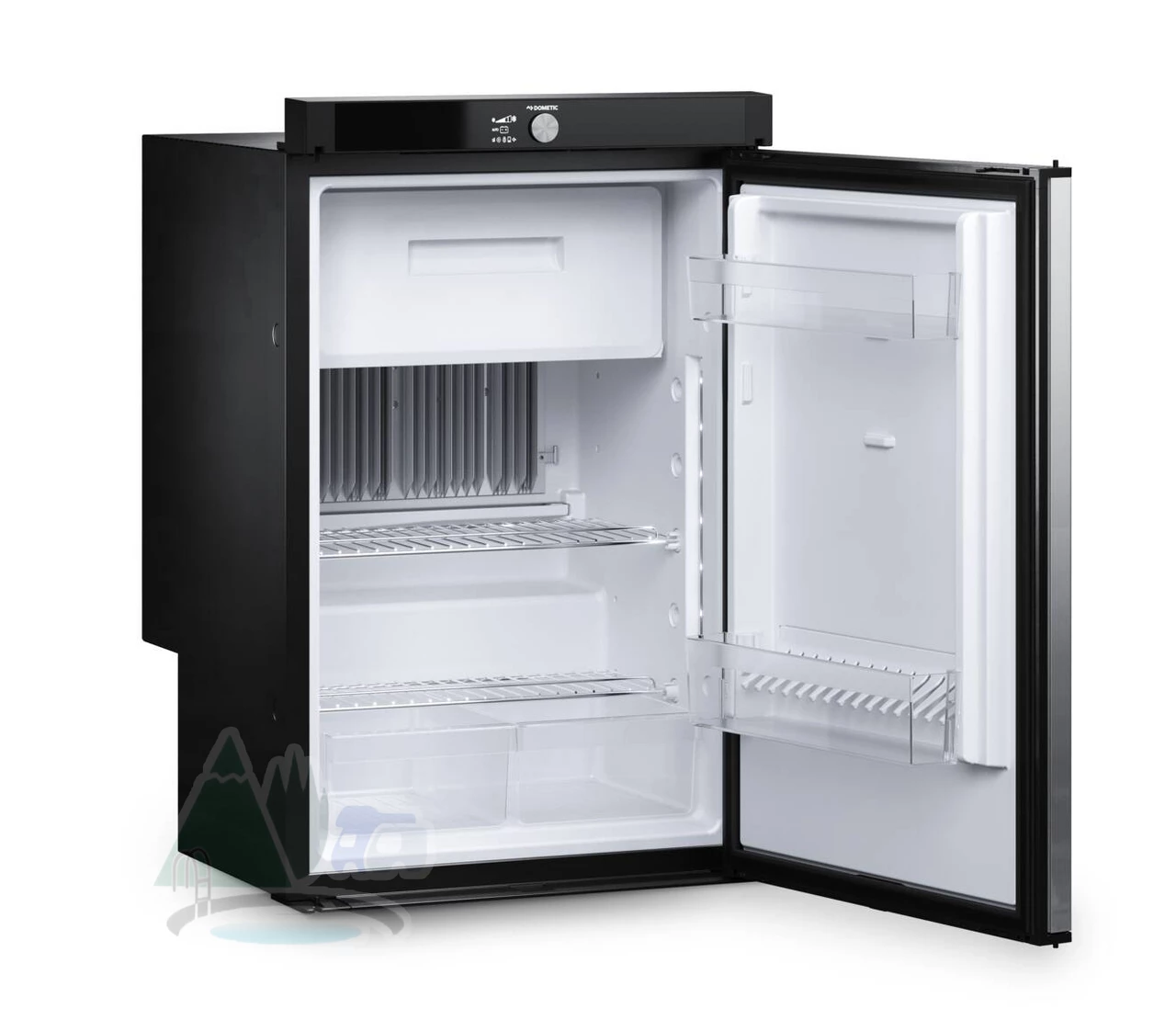

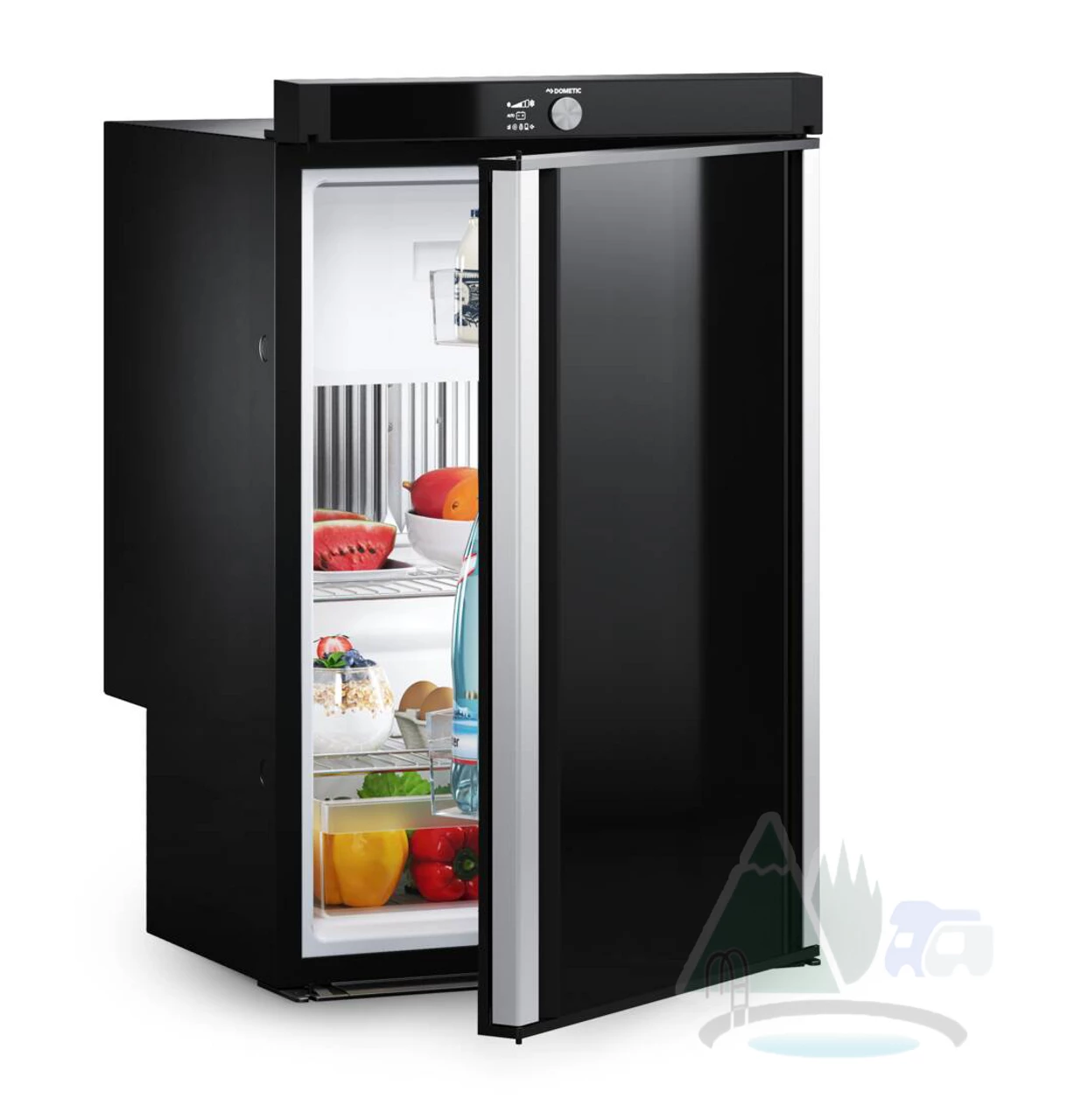

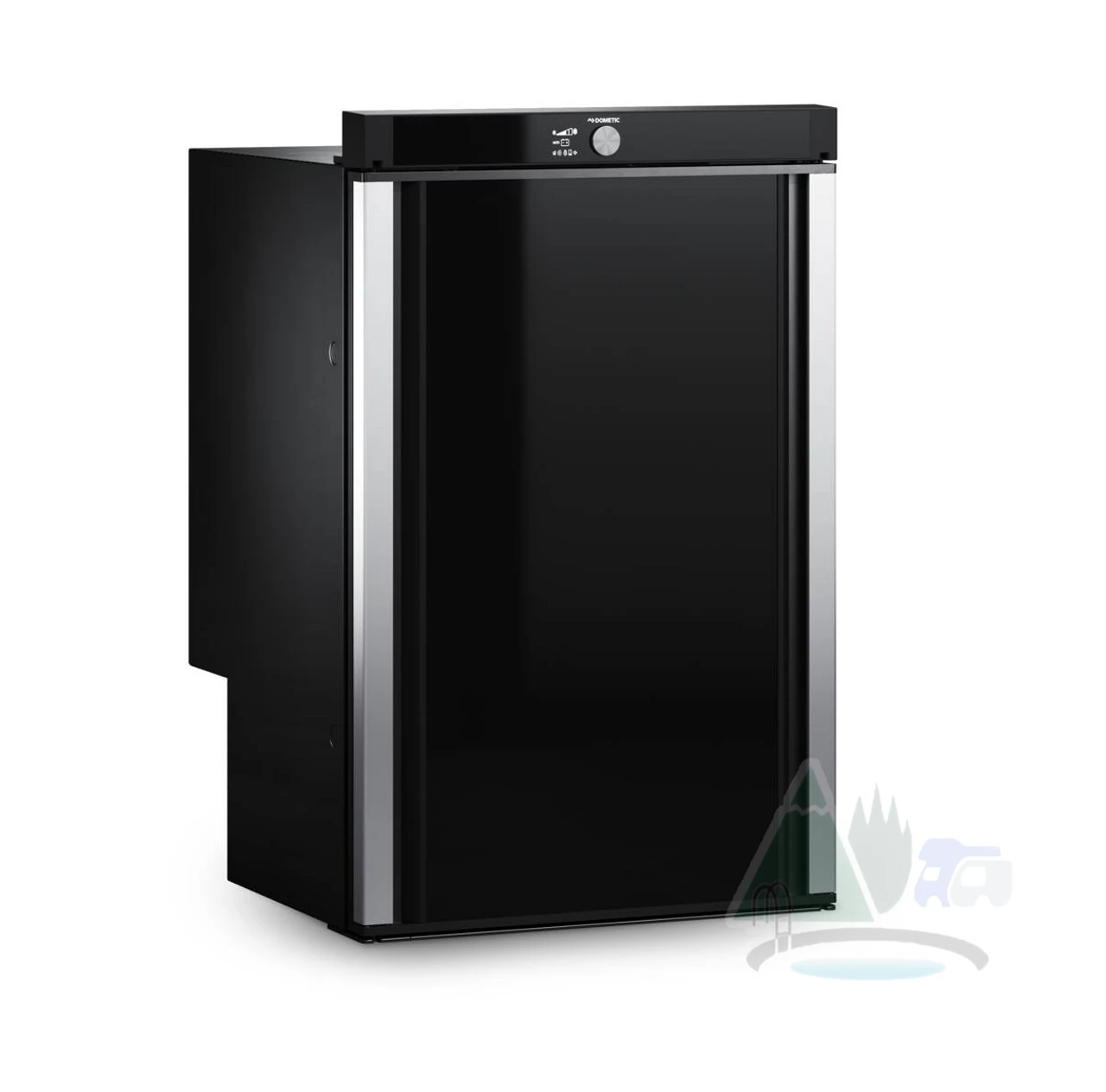

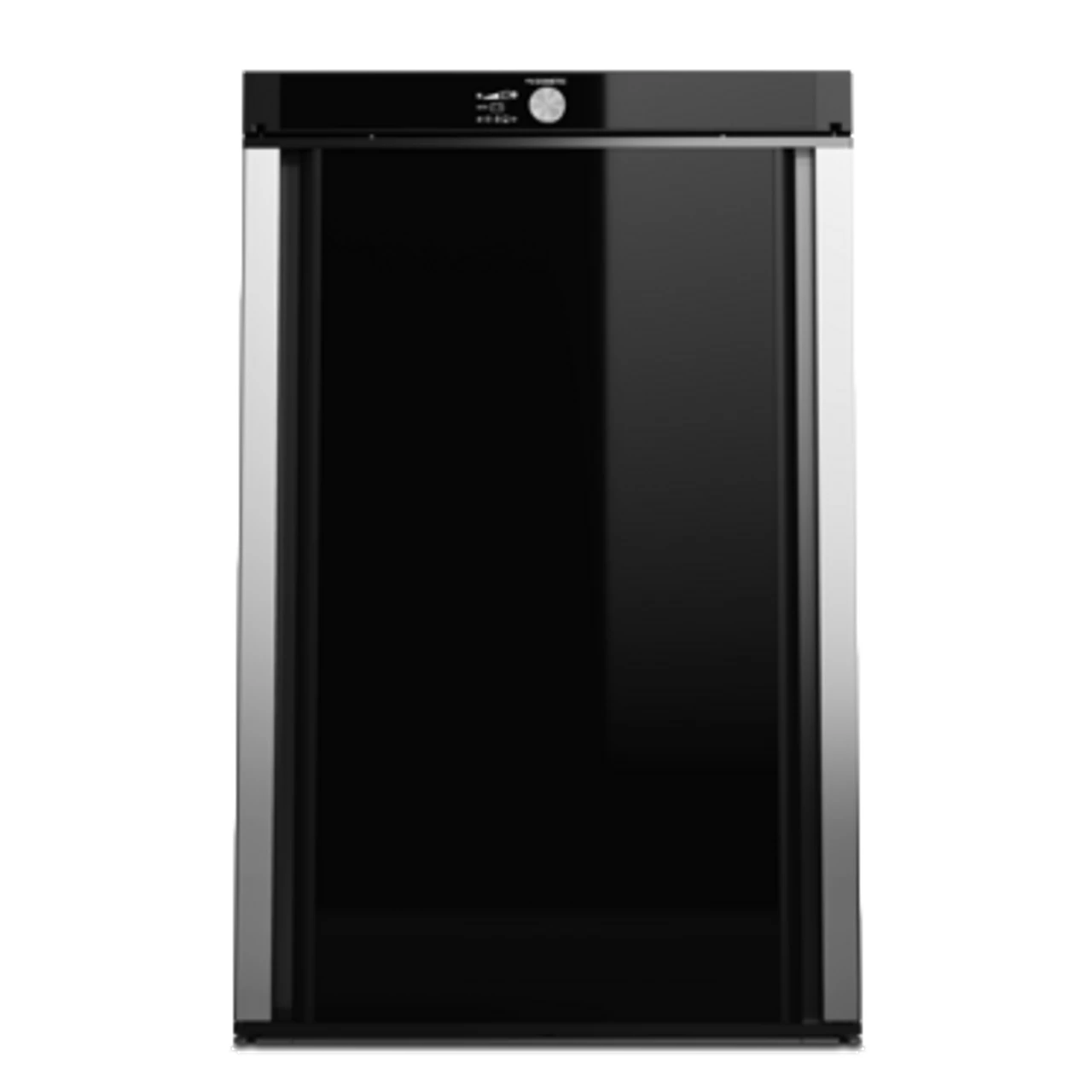

Dometic RMS 10.5XT Extra Deep Cabinet Fridge

High-capacity absorption fridge for campervan and motorhome

The Dometic RMS 10.5XT absorption fridge provides a deep profile for increased storage volume, making it perfect for touring use. The RMS 10.5XT fridge comes with 98 litres of internal volume, ensuring you don’t have to feel limited in your kitchen, and internal LED lighting to give you a clear view of your cooking options.

Double hinged absorption fridge freezer

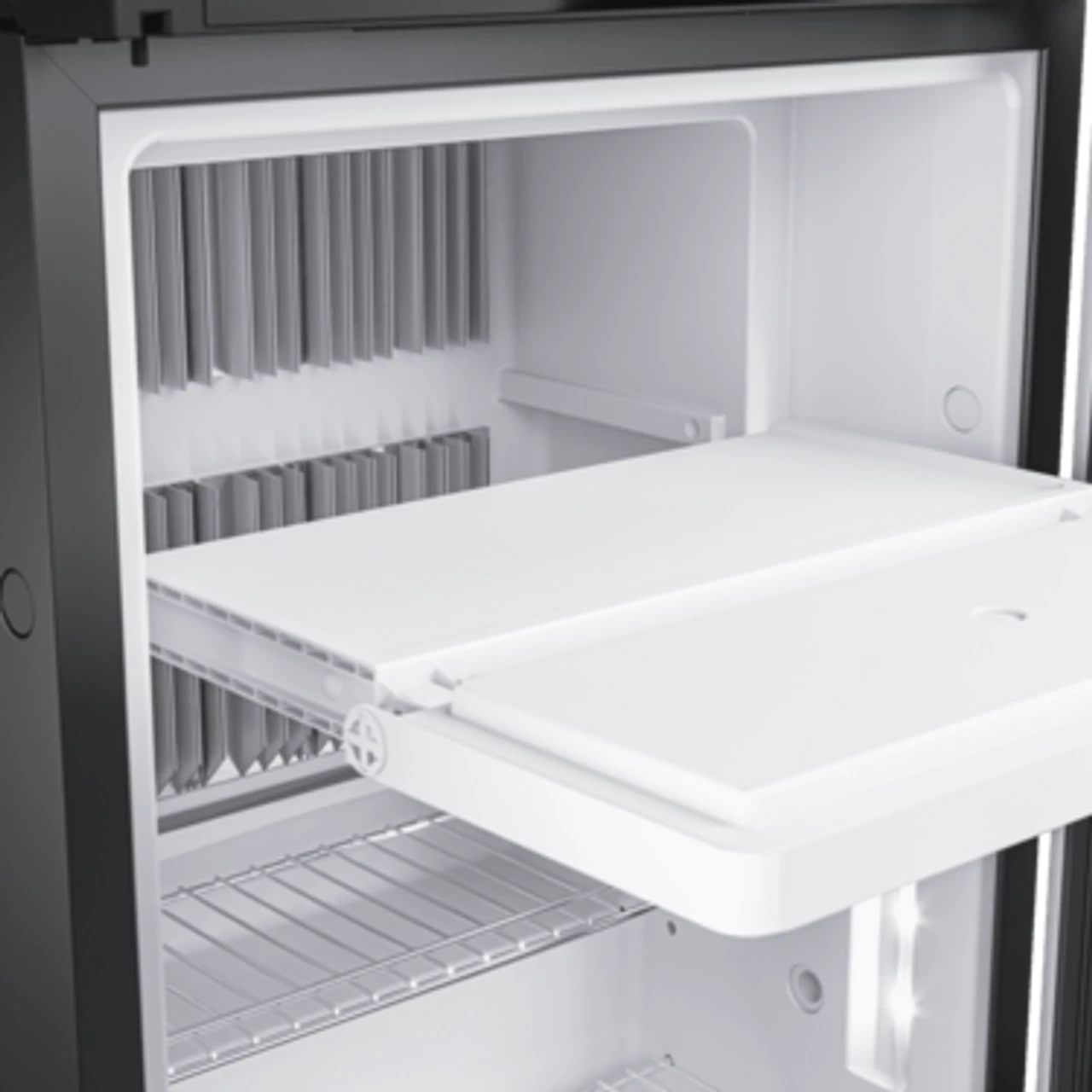

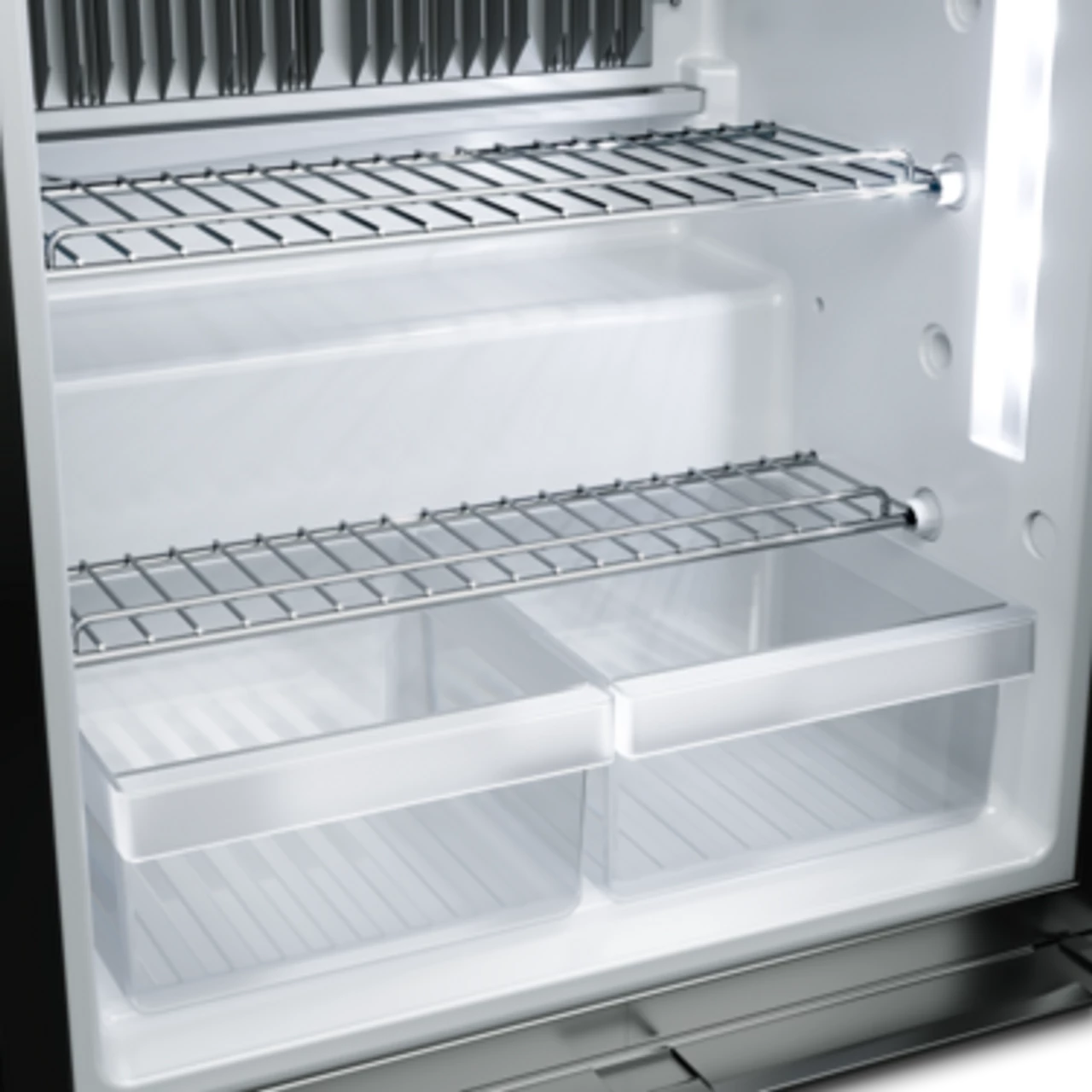

One of the key features on the Dometic 10 series fridges is their innovative door hinges, which allow your fridge door to open on both the left or the right. This makes the RMS 10.5XT perfect for maximising on the space available in your space. A removable freezer section also allows you to expand your fridge area if you so desire. Two slim crisper trays let you separate the fruit and veg in your camper fridge, ensuring they stay fresh as long as possible. And as an RMS model, this fridge has a reduced lower profile, allowing it to fit snugly over the wheel arch of your campervan, motorhome or caravan.

Sleek design, 3-way power & easy control

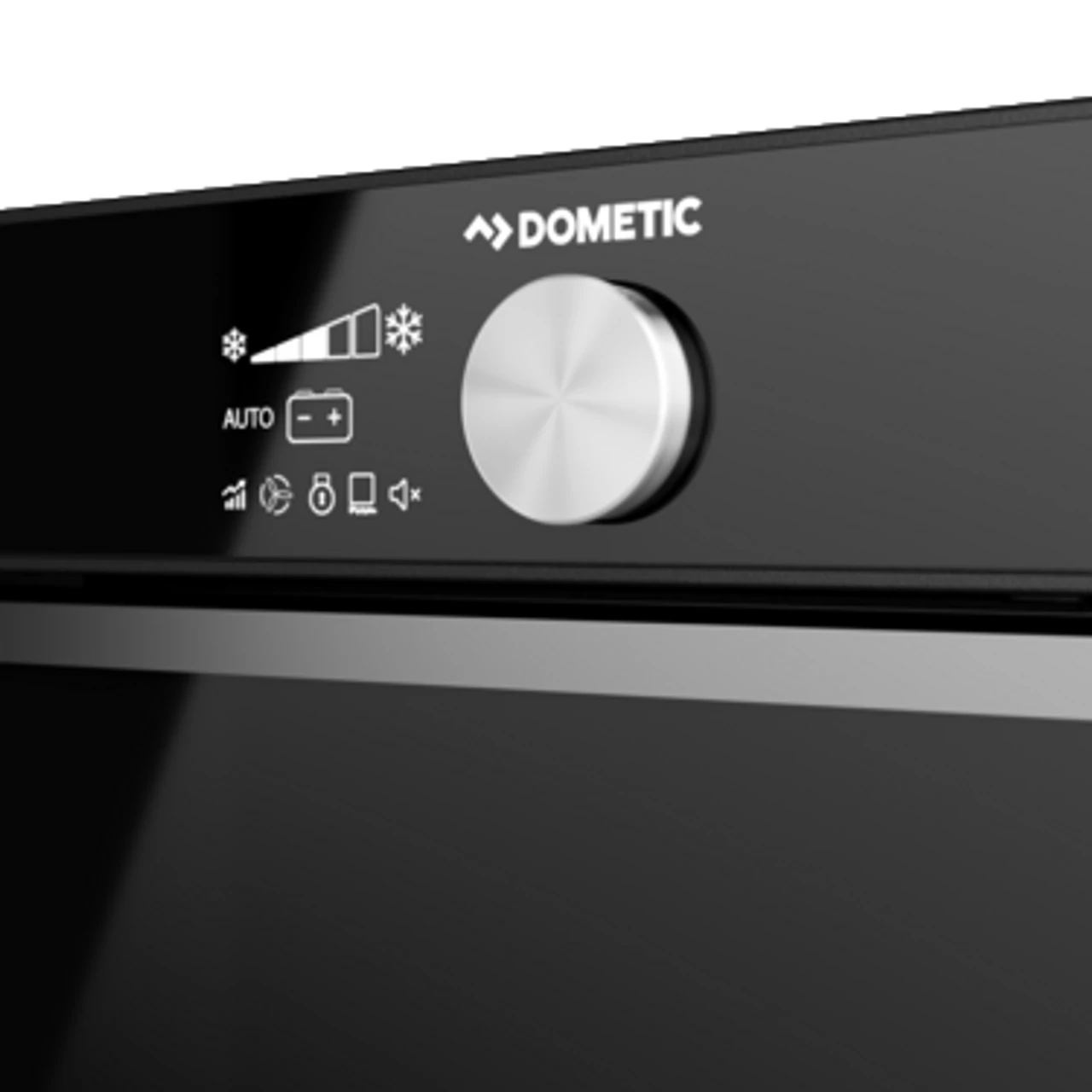

The Dometic RMS10.5XT is a 3-way fridge – this means it can be powered on gas (propane or butane), 12v (typical car or leisure battery voltage) or 230v (mains hookup). What’s more, it can automatically switch between these power sources, letting you focus on enjoying your holiday. Despite the technology behind this fridge, its isn’t complicated to use. A simple TFT colour display panel lets you monitor the power source in use, and the twist/push control knob makes it easy to tune your fridge’s cooling performance. Dometic have also included their latest Smart CI-BUS technology with this fridge, which lets it communicate seamlessly with the latest campervan and caravan control panels.



Dometic RMS 10.5XT smart absorption fridge features:

• Dual-hinge doors which can open on both sides
• Aluminium door handles
• 3-way power (12v, 230v & gas (propane or butane))
• Automatic power switching
• Colour TFT display panel to monitor power type in use
• Utilises ultra-quiet absorption refrigeration technology
• Removable freezer compartment
• Internal LED lighting





User Manual



Installation Manual







The Dometic RMS 10.5XT absorption fridge is a great replacement for the following Dometic & Thetford fridge models:

• Dometic: RM 855x / RMS 855x
• Thetford: N3111A / N3112E / N4018A / N4108E+ / N4112A / N1121P / N1122E / N1126E / N1126A / N3108E / N3108A / N971P / N972E / N976E / N976A

Please note – the measurements of the RMS 10.5XT 3 way fridge may not be exactly the same as your old fridge – please check measurements carefully!

Fridge replacement guide:

Technical Specifications:

Depth:

603mm

Height:

821mm

Width:

523mm

Net weight:

29 kg

Input voltage (AC):

230 V

Input voltage (DC):

12 V

Rated input power (AC):

135 W

Rated input power (DC):

130 W

Input frequency:

50 Hz

Refrigerant type:

R717

Refrigerant amount:

356 g

Parcel weight:

34 kg
