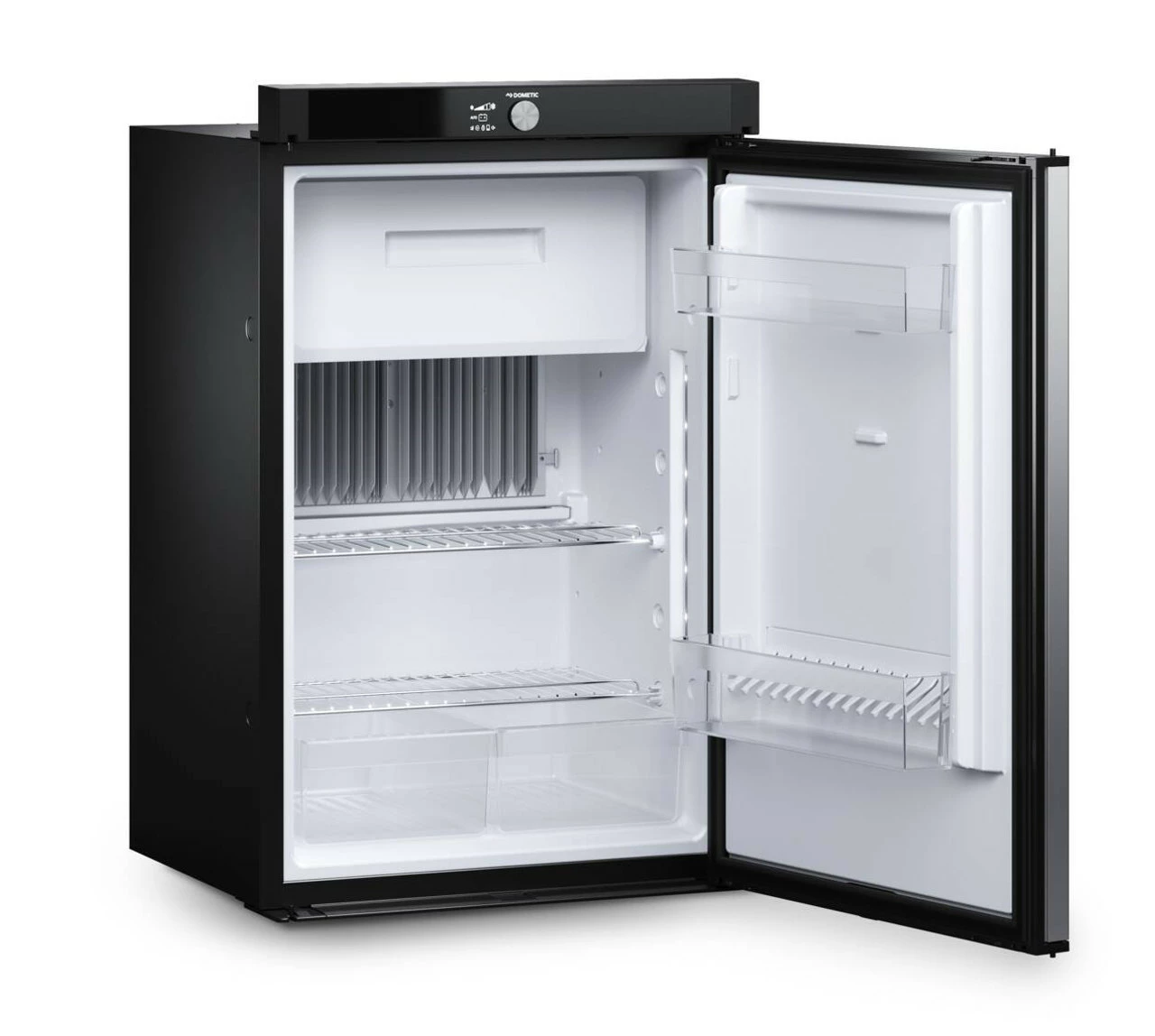

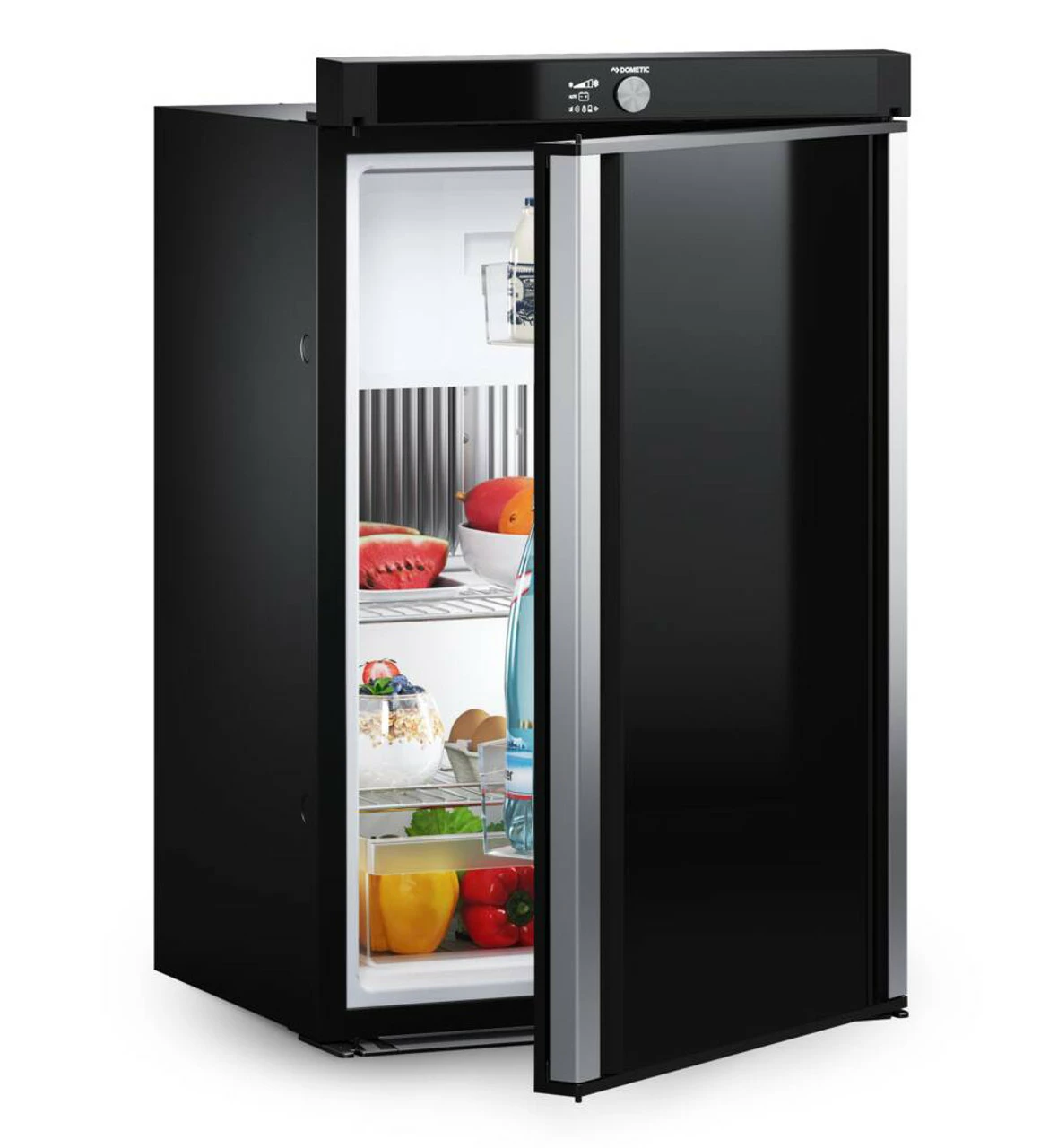

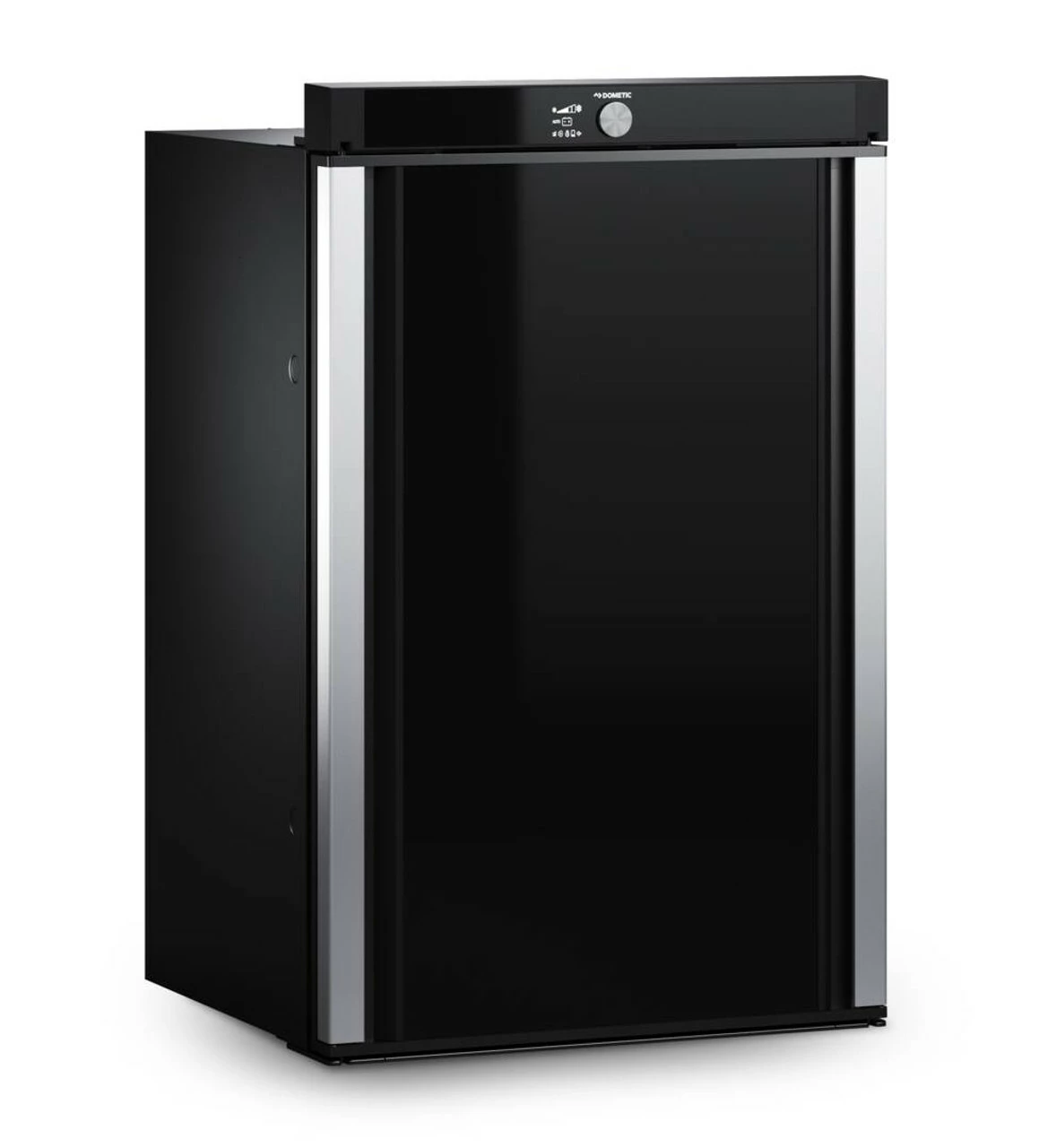

Dometic RM 10.5T 3-Way Absorption Fridge

Smart Absorption Under-counter Fridge Freezer for Caravan and Motorhomes

The new Dometic RM10 series fridges bring with them a new level of performance. Designed for use in caravan and motorhomes, the RM 10.5T 12v 230v refrigerator comes equipped with a TFT colour display panel, as well as a simple turn/push button, giving you easy control over your fridge’s cooling output.

Flexible fridge cooling

The Dometic RM10.5T 3-way fridge freezer can be powered by either gas, 12V battery power or 230V mains power. What’s more, the fridge is able to automatically switch between each power source, giving you one less thing to worry about on your holiday. The double-hinged door can open from either side, too, making it easy to access wherever you install it. This Dometic 3 way under counter fridge also features a removable freezer compartment, allowing you to maximise on your fridge’s volume if you desire.

Elegant design

The sleek design of the RM 10.5T camper fridge is beautifully finished with aluminium handles. Full side interior LED lighting makes it easy to use your fridge, and a noiseless design on all 3 power types ensures a good nights sleep. It’s not all design, though. Dometic have integrated their latest Smart CI-BUS technology into this fridge, which enables it to communicate with the latest control panels in caravans and motor homes.

Dometic RM10.5T 3-Way Fridge features:

• Double-hinged door
• Colour TFT control panel
• 3-way power: gas, 230v & 12V compatible
• Easy front control dial
• Removable freezer compartment
• Two slim veg crisper trays
• Full side LED interior light
• Noiseless absorption cooling on 12v, 230v and petrol

The Dometic RM 10.5T replaces the following fridges:

• Dometic: RM 400R, RM 400 P/C, RM 415, RM 4400, RM 4401LM, RM 4405LM, RM 6401, RM 7401 L, RM 7405 L, RM 850x
• Thetford: N100 1P, N100 2E, N100 6E, N100 6A, N3100A, N3104A, N3100E, N3104E, N4100E+, N4100A, N4104E+, N4104A, N1041P, N1042E, N1046E, N1046A

Please note – the measurements of the RM 10.5T may not be exactly the same as your previous fridge model – check measurements carefully! The RM 10.5T is delivered on a pallet.

User Manual



Installation Manual

Fridge replacement guide:



Technical Specifications:

Depth:

548mm

Height:

821mm

Width:

523mm

Contents:

1 pc fridge, 1 pc short operation manual, 1 pc QSG 1 pc manual for installation (for AM only), 4 pcs Caps for the screws, 1 pc T piece for the flue gas

Net weight:

28kg

Input voltage (AC):

230V

Input voltage (DC):

12V

Rated input power (AC):

135W

Rated input power (DC):

130W

Input frequency (AC):

50hz

Refrigerant type:

R717

Refrigerant amount:

414g

Average energy consumption at AC:

2.80 kWh/24h

Gas consumption [g/24h]:

270.00 g/24h

Parcel weight:

34kg
